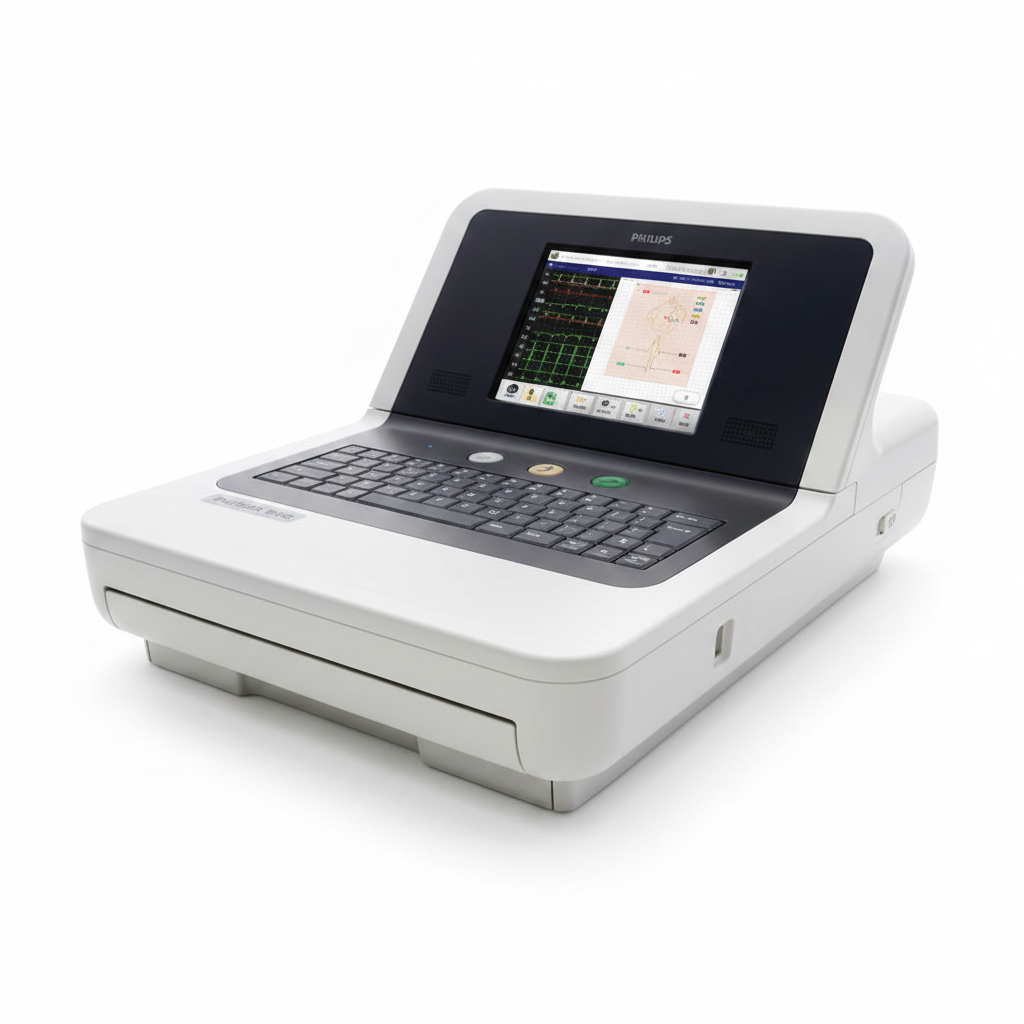

Philips PageWriter TC20

Elevate your clinical diagnostic capabilities with the Philips PageWriter TC20 ECG Machine. Built on an advanced, scalable platform, this high-performance workstation features an intuitive design, an easy-to-use touchscreen interface, and a smooth clinical workflow that facilitates swift, high-volume cardiac testing across demanding clinical spaces.

Channel Type & Configuration

●     12-Channel Diagnostic Workstation: Full 12-lead simultaneous acquisition that processes, displays, and outputs cardiac data in clear 3-, 6-, or 12-channel layouts. Incorporates an advanced visual lead placement map to track connectivity across all electrodes dynamically.

Key Features

●     6.5-Inch High-Resolution Touchscreen: Equipped with a brilliant color touchscreen that uses a simple, 1-2-3 button layout to guide operators through patient entry, tracing analysis, and final print production.

●     World-Class DXL ECG Algorithm: Employs the highly advanced Philips DXL 12-Lead ECG algorithm, offering unmatched interpretive accuracy, critical value alerts, and structural heart disease warnings.

●     Visual Lead Connection Quality Map: Real-time on-screen coloring (Green/Yellow/Red) actively identifies problematic or reversed electrode connections before you print, guaranteeing clean data.

●     Seamless Connectivity Integration: Standard network export protocols generate secure XML or PDF documents for direct transmission to your hospital's central EMR or PACS systems.

●     Medical-Grade Ergonomics: Engineered with specialized smooth-rolling wheels and an integrated cable management arm to keep workspace wires orderly and organized.

Technical Specifications

●     Sampling Rate Resolution: Ultra-precise raw signal sampling at 8,000 Hz for comprehensive waveform accuracy

●     Storage Capacity Integration: Internal storage safely maintains up to 200 comprehensive digital patient records

●     Thermal Printer Assembly: Built-in high-resolution digital array printer utilizing standard A4/Letter size Z-fold paper packs

●     Power System Specs: Dual AC mains operation coupled with an enterprise-grade rechargeable lithium-ion battery system

●     Regulatory Compliance: Full compliance with global IEC 60601-2-51 guidelines featuring built-in pacemaking detection capabilities

Condition:  Excellent - Imported Pre Owned
